DC Drilling Packages
On land or offshore drillings rigs with DC SCR drives, the common PQ problems encountered are:
Note : The negative effects of harmonics are acknowledged in many technical papers (see Resources section for more information) and do not require any explanation here other than to state that they generally fall into two basic categories:
- Excessive heating caused by additional I2R losses, iron losses, skin effect (due to VFDs), etc. in cables and equipment (e.g. generators, transformers and motors).
- Voltage distortion resulting from harmonic currents, at the various frequencies, passing through the system impedances and leakage inductances of the power system, disrupting or destroying susceptible equipment.
- The effect of SCR device commutation (see section below on ‘line notching’).
Harmonic voltage distortion is essentially ‘pollution’ of the supply voltage and is ‘seen’ by all equipment connected to the power system.
DC variable speed drives offshore are ‘6 pulse’ (i.e. one three phase rectifier). All rectifiers, when fed with sinusoidal voltages, draw non-sinusoidal or ‘non-linear current’ from the supply and are hence termed ‘non-linear loads.’ When the supply voltage is distorted and/or imbalanced, uncharacteristic additional harmonic currents and voltage are also drawn from the supply.

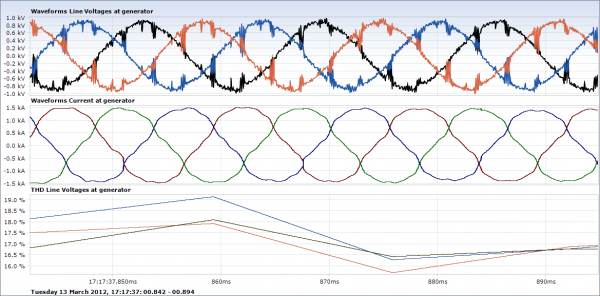

The figure below illustrates the voltage distortion a land-rig despite the load current being sinusoidal. The maximum total harmonic voltage distortion (THDu) show is 19.2%. The maximum THDu during the site visit was 26.3%. The THDu was due to the combination harmonic currents and line notching high frequency switching voltages.
Note : It is common on older rigs, the majority of them with DC SCR drilling packages, to have no harmonic mitigation installed as marine classification rules are not retrospective. However, the operational effects of excessive harmonic voltage distortion and other related PQ problems on rigs without harmonic mitigation can have a high cost in terms of lost production, maintenance and safety. These considerations may be not fully realised by their owners and operators.
DC drives – Line notching
Due to the commutation process within DC SCR drives, the line voltages are short circuited as one thyristor (SCR) device transfers current to the next device. The depth of voltage notch is exacerbated if there are no AC line reactors in the DC SCR drives as only the inductance of the generators limit the short circuit current.
The result can be spurious zero crossovers (of the voltages) leading to misfiring on equipment which depends on true zero crossovers for timing (e.g. AVRs and SCR firing control boards). Line notching, by interacting with cable and other stray impedances can excite repetitive voltage spikes which disrupt and damage equipment.

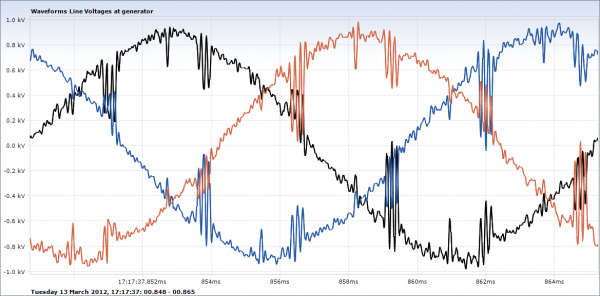

The figure below shows typical line notching due to three SCR drives operating at differing control angles (i.e. output DC voltage). Note the primary line notching tend towards zero due the lack of low speed, high torque operation (i.e. low DC voltage, high DC current).

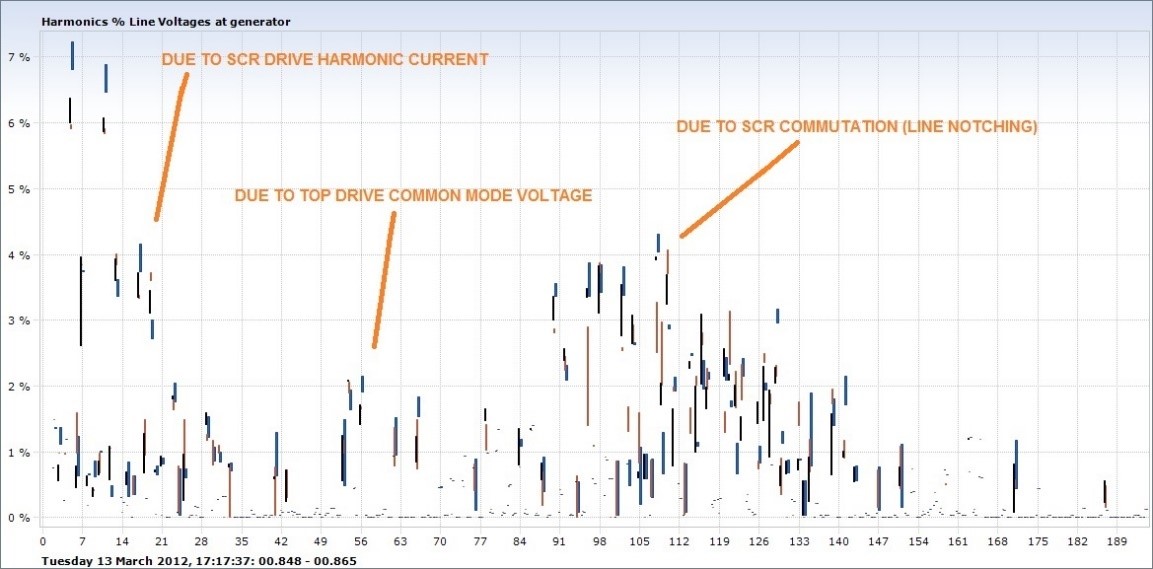

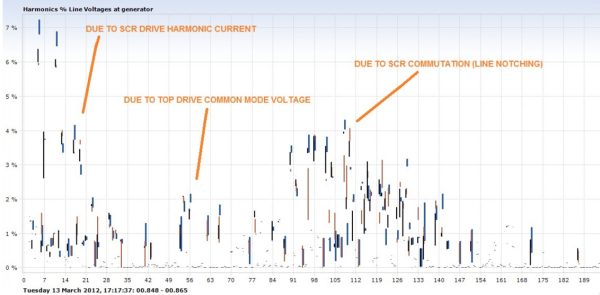

Note that on the above contains three discrete harmonic voltage spectrums (however there will be of course be some frequency overlap, over the three spectrums) :
- The 3rd to 43rd harmonic due to the non-linear load current drawn by the DC SCR drive acting on the system impedances.
- The 52nd to 70th due to the top drive VFD common mode voltage impressed on the switchboard busbars via the ground connection. The CMV travelled 180m through the ground.
- The 75th to 186th due mainly to the high frequency components in the line voltage notches.
Please note with conventional power quality analysers only the harmonic voltages to the 50th or 63rd order will only be visible. This restriction does not assist troubleshooting as only portion of the overall PQ picture can be observed. For this reason, Harmonic Solutions Oil & Gas use advanced cycle by cycle power quality analysers which capture every single cycle and harmonic orders to 512st in addition to 200MHz scope-meters with inbuilt spectrum analysers and EMC spectrum analysers).
DC Drives – Voltage Spikes
On drilling rigs and other installations with DC SCR drives, interaction between the line notching and stray cable and other capacitance (e.g. VFD EMC filters) can result in ringing (i.e. voltage oscillations) and resonance within the line notches and repetitive voltage spikes which adversely affect other equipment including washing machines.

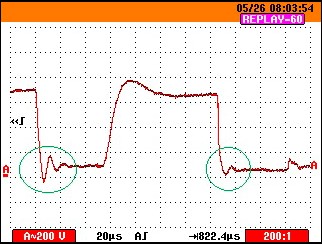

An example SCR drive derived repetitive voltage spikes is depicted below.
The effect of the voltage spikes can be serious and very disruptive. On one jack-up drilling rig, for example, the following failures, recorded over a three-month period, were attributed directly to repetitive voltage spikes :
- Four VFD EMC filters totally destroyed
- Multiple failures (>10 off) 24V and 48V switched mode power supplies
- Multiple failures (>12 off) electronic thermostats
- Numerous failures of fire & gas detection system input filters
- Repeated and multiple failures of fluorescent lighting capacitors
- Continual tripping of laundry washing machines
DC Drives – Low generator displacement power factor
For DC SCR drives, the displacement power factor (DPF – fundamental components) and true power factor (TPF), which includes the harmonic components, are similar in value. Both are dependent on the SCR drive output DC voltage (DC motor speed) and torque demand (DC current). At low speed/high torque operation, the generators have to supply large amounts of reactive power (kVAr) to the SCR drives, reducing their power factor significantly, often to <0.1-0.2 lag and limiting the generators capability to supply the design kW load without overheating.

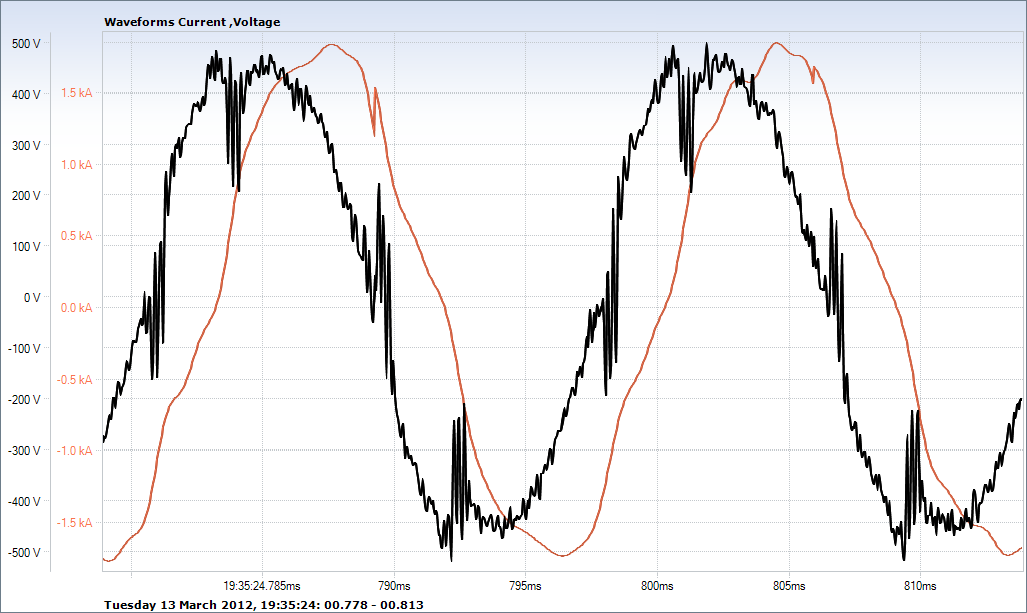

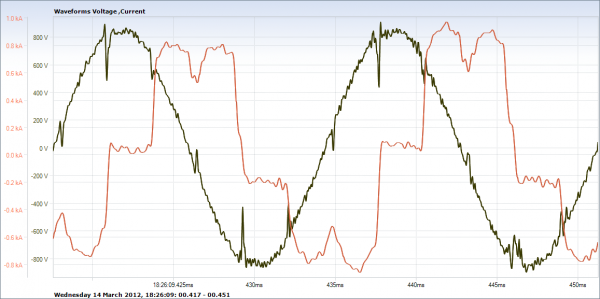

The figure below shows the relationship between L12 voltage and L1 current at low displacement power factor (DPF).

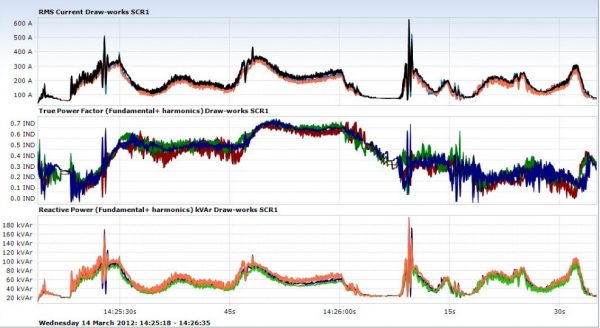

The trends below illustrate the rms current, power factor and reactive power demand (kVAr) for the SCR draw-works on a land-rig. As can be seen, the power factor reduces (and kVAr demand increases) during periods of increased current demand. The DPF and reactive power demands are dynamic and also dependent on the number of generators operating in parallel.
Note: In comparison, VFDs have a high ‘displacement power factor’ (DPF), around 0.96-0.98 lag, irrespective of load. The ‘true power factor’ (TPF includes the ‘harmonic distortion factor’ is lower and is dependent on the harmonic current magnitude, which varies with load.
High VFD (or common DC bus diode rectifiers) DPF can lead to problems with generator leading power factor if passive harmonic mitigation are used incorrectly as they can inject excessive reactive power into the power system at light or no load. This is also an issue with AFE VFD L-C-L filter capacitors at quiescent or light loading. On generator supply it can result in DPF and AVR instability followed by generator tripping.
