du/dt output filters

du/dt filters reduce the voltage overshoot and associated problems due to the switching of PWM VFDs, especially when retrofitting VFDs to existing, perhaps older motors with suspect insulation.

The filters eliminate ringing due to long cables (<150m).

Available from 2A to 1000A in voltages to 690V. IP00/IP20 option as well as enclosed versions.

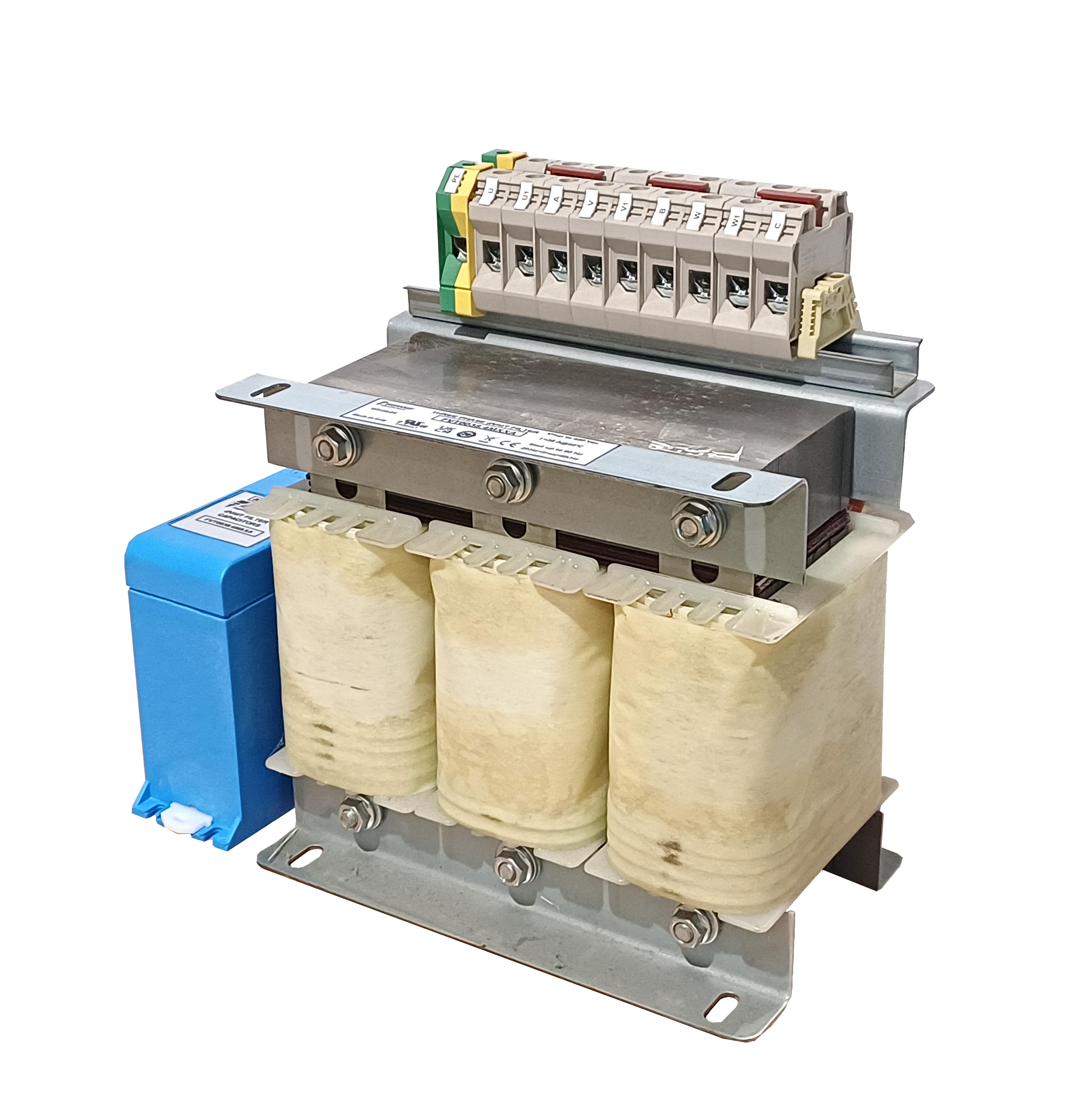

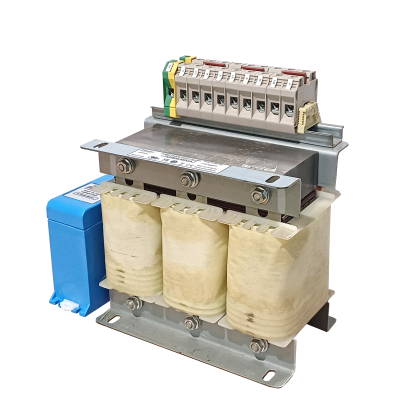

IP00 du/dt filter (45A)

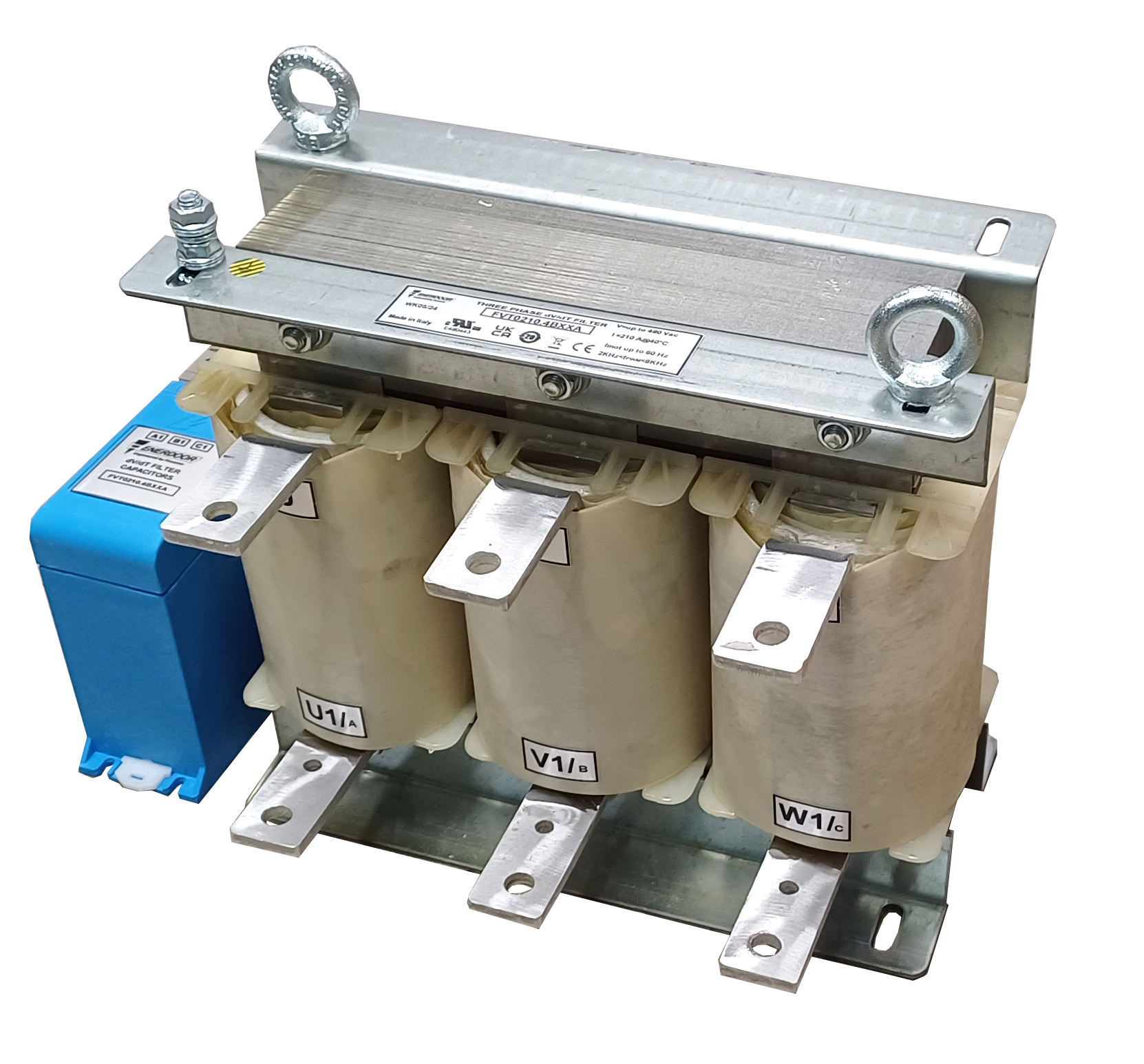

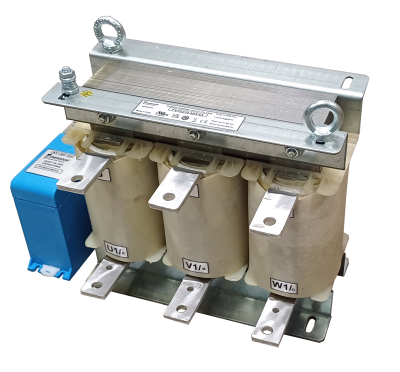

IP00 du/dt filter (320A)

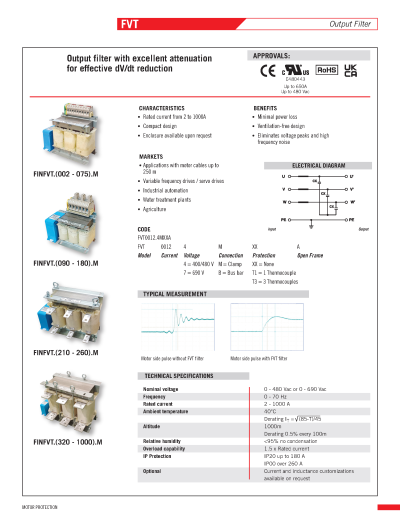

Brochure with specifications

du/dt filter brochure click above

Harmonic Solutions Oil & Gas has the knowledge and experience

When applied correctly, filters are an important tool in the mitigation toolbox. However, no form of mitigation is perfect. The secret of success is recognising the pros and cons of all types of active and passive mitigation and being able to apply the most appropriate form of mitigation for any given application.

The staff at Harmonic Solutions Oil & Gas have been involved in applying active and series passive filters since 2003 to on demanding marine and offshore applications since 2007 with our site harmonics. PQ and site services.

Contact us with your application details and let us assist you.
